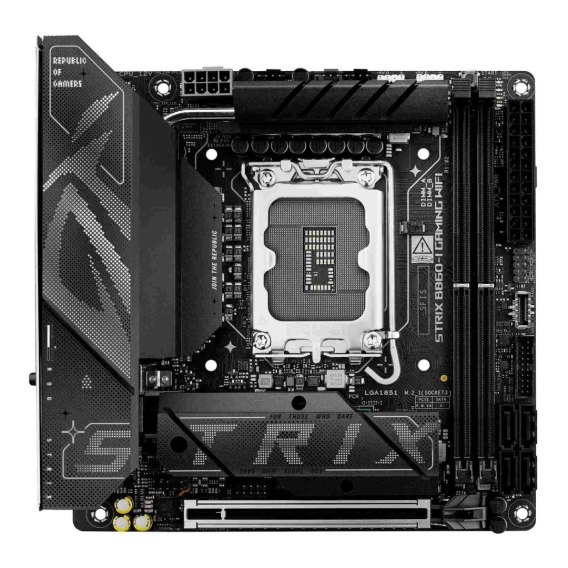

Płyta Asus ROG STRIX B860-I GAMING WIFI /B860/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/Mini-ITX
Symbol:
ROG STRIX B860-I GAMING WIFI
1435.00
| Wysyłka w ciągu | 3 dni |
| Cena przesyłki | 0 |
| Dostępność |
|
| Waga | 0.15 kg |
| Kod kreskowy | |
| EAN | 4711387815991 |
| Data dodania | 2025-12-09 |
#zostańznami - kupuj online!
| Zostaw telefon |
Gniazdo procesora: Socket 1851
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Uwagi do procesora: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Format płyty: Mini-ITX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
Chipset płyty głównej: Intel® B860
Ilość złącz pamięci DDR5: 2
Maksymalna wielkość pamięci: 128 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-9066+ (OC)
Uwagi do pamięci RAM: Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), DIMM Fit
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 2x M.2
Uwagi do kontrolera SATA: Intel® Core™ Ultra Processors(series 2):, - M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode), Intel® B860 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Gniazda karty graficznej: HDMI, DisplayPort, Thunderbolt™ 4
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps,, for resolution support please check DisplayPort 2.1 specs., VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording in, Supports up to 32-Bit/384 kHz playback on front panel, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Premium audio capacitors, Dedicated audio PCB layers
Złącza PCI Express x16: 1
Uwagi do złącz PCI: Intel Core Ultra Processors (series 2), - 1 x PCIe 5.0 x16 slot, To ensure compatibility of the device installed, please refer to
Port LAN: 1x 2,5 Gigabit LAN Intel®
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 4
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 2x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunderbolt 4
Gniazda USB na płycie głównej: 1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, please note that no driver is available, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countr., The Bluetooth version may vary
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin AIO Pump header, 4-pin Chassis Fan header, 2x Addressable Gen 2 header, 10-1 pin System Panel header, Thermal Sensor header, Clear CMOS button(s), Wi-Fi module with an antenna connector
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Wymiary [S x W] (mm): 170 x 170
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x Screw package for M.2 SSD, 1 x M.2 Bracket, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x Quick start guide
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Operating System: Windows 11 (22H2 & later)
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Uwagi do procesora: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Format płyty: Mini-ITX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
Chipset płyty głównej: Intel® B860
Ilość złącz pamięci DDR5: 2
Maksymalna wielkość pamięci: 128 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-9066+ (OC)
Uwagi do pamięci RAM: Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), DIMM Fit
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 2x M.2
Uwagi do kontrolera SATA: Intel® Core™ Ultra Processors(series 2):, - M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode), Intel® B860 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Gniazda karty graficznej: HDMI, DisplayPort, Thunderbolt™ 4
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps,, for resolution support please check DisplayPort 2.1 specs., VGA resolution support depends on processors' or graphic cards' resolution
Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording in, Supports up to 32-Bit/384 kHz playback on front panel, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Premium audio capacitors, Dedicated audio PCB layers
Złącza PCI Express x16: 1
Uwagi do złącz PCI: Intel Core Ultra Processors (series 2), - 1 x PCIe 5.0 x16 slot, To ensure compatibility of the device installed, please refer to
Port LAN: 1x 2,5 Gigabit LAN Intel®
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 4
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 2x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunderbolt 4
Gniazda USB na płycie głównej: 1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, please note that no driver is available, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countr., The Bluetooth version may vary
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin AIO Pump header, 4-pin Chassis Fan header, 2x Addressable Gen 2 header, 10-1 pin System Panel header, Thermal Sensor header, Clear CMOS button(s), Wi-Fi module with an antenna connector
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Wymiary [S x W] (mm): 170 x 170
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x Screw package for M.2 SSD, 1 x M.2 Bracket, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x Quick start guide
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Operating System: Windows 11 (22H2 & later)
Standard pamięci:
DDR5-9066+ (OC)
Zawiera baterię / akumulator:
Tak
Wyposażenie dodatkowe:
1 x M.2 Bracket, 1 x Panel cable, 1 x ROG USB2.0 splitter cable, 1x ASUS WiFi Q-Antenna, 1x Cable ties package, 1x M.2 Q-Latch package, 1x Quick start guide, 1x ROG key chain, 1x ROG Strix stickers, 1x Screw package for M.2 SSD, 2x SATA 6Gb/s cables
Format płyty:
Mini-ITX
Wymiary [S x W] (mm):
170 x 170
Maksymalna wielkość pamięci:
128 GB
Port LAN:
1x 2,5 Gigabit LAN Intel®
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth:
Bluetooth V5.4
Chipset płyty głównej:
Intel® B860
Gniazdo procesora:
Socket 1851
Obsługiwane typy procesorów:
Intel Core Ultra Processors (series 2)
BIOS:
256Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE
Tryb pracy pamięci RAM:
Dual Channel
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s + 2x M.2
Gniazda karty graficznej:
DisplayPort, HDMI, Thunderbolt™ 4
Zintegrowana karta dźwiękowa:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16:
1
Uwagi do karty sieciowej:
ASUS LANGuard
Maksymalna ilość portów USB 2.0:
4
Maksymalna ilość portów USB 3.x:
8
Porty USB na panelu tylnym:
2x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunderbolt 4
Gniazda USB na płycie głównej:
1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS/2:
Brak
Port szeregowy (COM):
Brak
Inne porty i gniazda:
10-1 pin System Panel header, 2x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin Chassis Fan header, 4-pin CPU Fan header, Clear CMOS button(s), Thermal Sensor header, Wi-Fi module with an antenna connector
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin)
Uwagi do procesora:
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0
Uwagi do pamięci RAM:
ASUS Enhanced Memory Profile III (AEMP III), DIMM Fit, Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module
Uwagi do kontrolera SATA:
- 4 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B860 Chipset:, Intel® Core™ Ultra Processors(series 2):, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Uwagi do karty graficznej:
for resolution support please check DisplayPort 2.1 specs., Graphics specifications may vary between CPU types. Please refer to, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps,, VGA resolution support depends on processors' or graphic cards' resolution
Uwagi do złącz PCI:
- 1 x PCIe 5.0 x16 slot, Intel Core Ultra Processors (series 2):, To ensure compatibility of the device installed, please refer to
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
2
Uwagi do karty dźwiękowej:
and speakers, Dedicated audio PCB layers, High quality 120 dB SNR stereo playback output and 110 dB SNR recording in, Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone, Premium audio capacitors, Savitech SV3H712 AMP, Supports up to 32-Bit/384 kHz playback on front panel, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, SupremeFX Shielding Technology
Maksymalna ilość portów USB 4.0:
1
Uwagi do WiFi / BT:
2x2 Wi-Fi 7 (802.11be), For Windows 10, please note that no driver is available, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, The Bluetooth version may vary, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countr., Wi-Fi features may vary depending on the operating system
