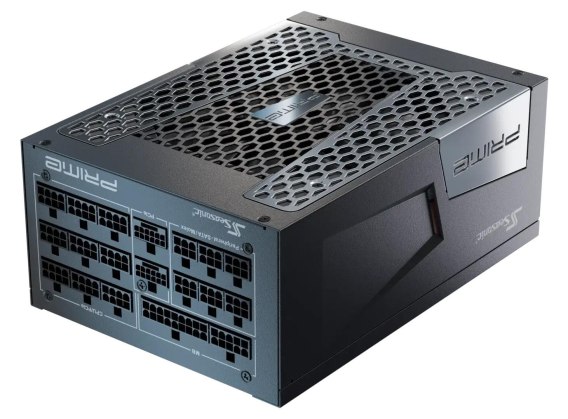

• CASE PSU ATX 2200W/PRIME-PX-2200-ATX30 SEASONIC

Symbol: PRIME-PX-2200-ATX30
2794.00
2514.6 cena z kodem GIFTJOY
szt. Do przechowalni
Wysyłka w ciągu 3 dni
Cena przesyłki 0
Kurier 0
Dostępność 9 szt.
Data dodania 2025-10-28

#zostańznami - kupuj online!

Zostaw telefon

PRIME PX ATX 3.1
Power. Performance. PRIME.

PRIME PX ATX 3
When selecting a power supply, it's crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.

ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic's latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.

Micro Tolerance Load Regulation
Seasonic's latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Digital Hybrid Fan Control
Seasonic's vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

Manufacturer:
SEASONIC
CnCode:
85044095
Description:

PRIME PX ATX 3.1
Power. Performance. PRIME.

PRIME PX ATX 3
When selecting a power supply, it's crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robu

Unit Calculated Volume:
0.01406 cubm
Unit Calculated Weight:
6.2 kg
Units per Shipping Box:
4
Vendor Homepage:
https://seasonic.com/atx3-prime-px-2200/
Model name:
PRIME PX ATX 3.1
Height:
86 mm
Depth:
210 mm
Width:
150 mm
Number of fans:
1 fan(s)
Product colour:
Black
EPS power connector (8-pin):
Yes
Category Code:
PSU
Unit Box Height:
0.2
Unit Box Length:
0.455
Unit Box Width:
0.13
Summary:
Seasonic Prime PX. Total power: 2200 W, AC input voltage: 115 - 240 V, Input current: 15 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,470,550,570,760,860,950 mm. Purpose: PC, Power supply
On/off switch:
Yes
AC input voltage:
115 - 240 V
Operating temperature (T-T):
0 - 50 °C
Cables included:
AC,CPU,PCIe,Peripheral (Molex),SATA
Compliance certificates:
CCC/CE/REACH/RoHS/WEEE
Package type:
Box
Fan diameter:
135 mm
Mean time between failures (MTBF):
150000 h
Cooling type:
Active
80 PLUS certification:
80 PLUS Platinum
Purpose:
PC
Input current:
15 A
Peripheral (Molex) power connectors (4-pin):
3
Combined power (+12V):
2200 W
Combined power (+3.3V):
125 W
Combined power (+5V):
125 W
Combined power (+5Vsb):
15 W
Combined power (-12V):
6 W
Max output current (+3.3V):
25 A
Max output current (+5V):
25 A
Max output current (+5Vsb):
3 A
Max output current (-12V):
0.5 A
Total power:
2200 W
Cabling type:
Fully-Modular
Motherboard power cable length:
610 mm
Motherboard power connector:
24-pin ATX
Number of SATA power connectors:
10
Peripheral (Molex) power cable length:
470/690 mm
SATA power cable length:
450/470/550/570/760/860/950 mm
ATX version:
3.0
Power supply unit (PSU) form factor:
ATX
CPU power cable length:
700 mm
Bearing technology:
FDB
Cable tie(s) included:
Yes
Max output current (+12V):
183.3 A
