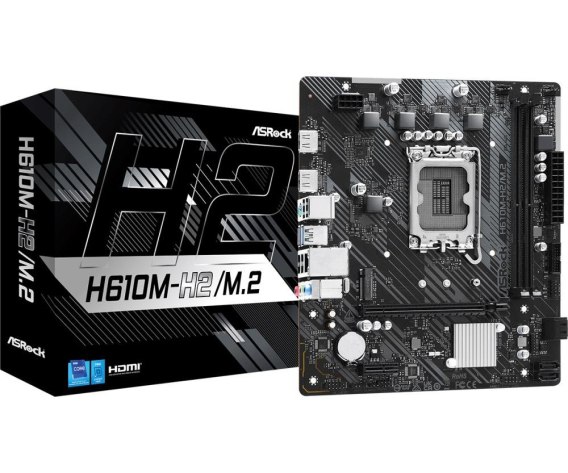

MB H610 S1700 MATX/H610M-H2/M.2 ASROCK
Symbol:
H610M-H2/M.2
| Wpisz swój e-mail |
| Wysyłka w ciągu | 3 dni |
| Cena przesyłki | 0 |
| Dostępność |
|
| Waga | 0.5 kg |
| Kod kreskowy | |
| EAN | 4710483946929 |
| Data dodania | 2025-10-28 |
| Zostaw telefon |
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Model:
H610M-H2/M.2
Manufacturer:
ASROCK
CnCode:
84733020
Description:
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and life
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and life
Product Net Weight:
0.5 kg
Unit Calculated Volume:
0.004511 cubm
Unit Calculated Weight:
0.758 kg
Units per Shipping Box:
20
Vendor Homepage:
https://www.asrock.com/mb/Intel/H610M-H2M.2/index.asp
Depth:
193 mm
Width:
220 mm
Long Description:
Asrock H610M-H2/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen,.... Supported memory types: DDR4-SDRAM, Maximum in
Product colour:
Multicolour
Bullet Points:
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- 2 x DDR4 DIMMs
- Supports Dual Channel, up to 3200
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
HDMI ports quantity:
2
HDCP:
Yes
Ethernet LAN:
Yes
Windows operating systems supported:
Windows 10 x64/Windows 11 x64
USB 2.0 ports quantity:
4
Wi-Fi:
No
Certification:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Disclaimer:
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The specification is subject to change without notic
The specification is subject to change without notic
Ethernet LAN (RJ-45) ports:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
2
Audio output channels:
7.1 channels
Microphone in:
Yes
EPS power connector (8-pin):
Yes
ATX Power connector (24-pin):
Yes
Component for:
PC
Processor manufacturer:
Intel
Maximum internal memory:
64 GB
PS/2 ports quantity:
1
Motherboard chipset:
Intel H610
Audio chip:
Realtek ALC897
Line-in:
Yes
Memory slots type:
DIMM
Number of memory slots:
2
Supported memory types:
DDR4-SDRAM
Supported storage drive types:
HDD & SSD
Motherboard form factor:
Micro ATX
Memory channels:
Dual-channel
LAN controller:
Realtek RTL8111H
Number of M.2 (M) slots:
1
PCI Express x1 (Gen 3.x) slots:
1
USB 2.0 connectors:
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
Number of SATA III connectors:
4
Processor socket:
LGA 1700
Supported storage drive interfaces:
M.2,SATA III
BIOS type:
UEFI AMI
Ethernet interface type:
Fast Ethernet/Gigabit Ethernet
Front panel audio connector:
Yes
BIOS memory size:
128 Mbit
ECC ?ompatibility:
ECC & non-ECC
PCI Express x16 (Gen 4.x) slots:
1
CPU fan connector:
Yes
Number of chassis fan connectors:
1
Chassis intrusion connector:
Yes
Unbuffered memory:
Yes
Motherboard chipset family:
Intel
12V power connector:
Yes
Compatible processor series:
In/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen
Number of CPU fan connectors:
1
Supported memory clock speed (max):
3200 MHz
TPM connector:
Yes
