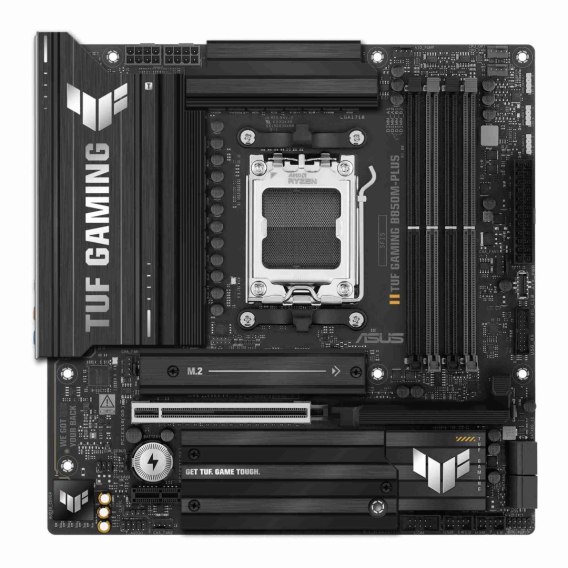

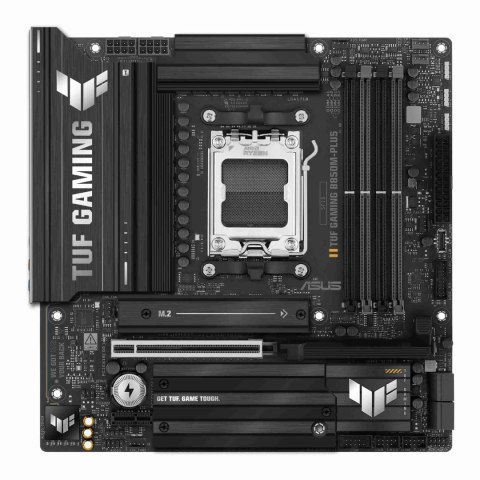

Płyta Asus TUF GAMING B850M-PLUS /AMD B850/DDR5/SATA3/M.2/USB3.2/PCIe5.0/AM5/mATX
Symbol:
TUF GAMING B850M-PLUS
1258.00
| Wysyłka w ciągu | 3 dni |
| Cena przesyłki | 0 |
| Dostępność |
|
| Waga | 0.15 kg |
| Kod kreskowy | |
| EAN | 4711387775172 |
| Data dodania | 2025-12-09 |
#zostańznami - kupuj online!
| Zostaw telefon |
Gniazdo procesora: Socket AM5
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Format płyty: M-ATX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 192 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8000+ (OC)
Uwagi do pamięci RAM: ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Adjustments will be made based on the specifications of mass-produced, memory products available on the market., Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Specifications vary by CPU types, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Gniazda karty graficznej: HDMI, DisplayPort
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4
Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), Supports up to 32-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, 7.1 Surround Sound audio.
Złącza PCI Express x16: 2
Złącza PCI Express x1: 1
Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset:, 1 x PCIe 4.0 x1 slot, Specifications vary by CPU types
Port LAN: 1x 2,5 Gigabit LAN Realtek®
Uwagi do karty sieciowej: TUF LANGuard
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 11
Porty USB na panelu tylnym: 4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: Nie
Port Bluetooth: Nie
Port PS/2: Brak
Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS button(s), Chassis intrusion header, Front Panel Audio header (AAFP), 10-1 pin System Panel header, BIOS FlashBack button
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 244 x 244
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide, 1 x TUF GAMING sticker
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Operating System: Windows 11, Windows 10 64-bit, Manageability: WOL by PME, PXE
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Format płyty: M-ATX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 192 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8000+ (OC)
Uwagi do pamięci RAM: ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Adjustments will be made based on the specifications of mass-produced, memory products available on the market., Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Specifications vary by CPU types, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Gniazda karty graficznej: HDMI, DisplayPort
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4
Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), Supports up to 32-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, 7.1 Surround Sound audio.
Złącza PCI Express x16: 2
Złącza PCI Express x1: 1
Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset:, 1 x PCIe 4.0 x1 slot, Specifications vary by CPU types
Port LAN: 1x 2,5 Gigabit LAN Realtek®
Uwagi do karty sieciowej: TUF LANGuard
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 11
Porty USB na panelu tylnym: 4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: Nie
Port Bluetooth: Nie
Port PS/2: Brak
Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS button(s), Chassis intrusion header, Front Panel Audio header (AAFP), 10-1 pin System Panel header, BIOS FlashBack button
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 244 x 244
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide, 1 x TUF GAMING sticker
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Operating System: Windows 11, Windows 10 64-bit, Manageability: WOL by PME, PXE
Standard pamięci:
DDR5-8000+ (OC)
Zawiera baterię / akumulator:
Tak
Wyposażenie dodatkowe:
1 x M.2 rubber package, 1x Quick start guide, 1x TUF GAMING sticker, 2 x Screw packages for M.2 SSD, 2x SATA 6Gb/s cables
Format płyty:
M-ATX
Wymiary [S x W] (mm):
244 x 244
Maksymalna wielkość pamięci:
192 GB
Port LAN:
1x 2,5 Gigabit LAN Realtek®
Port Wi-Fi:
Nie
Port Bluetooth:
Nie
Chipset płyty głównej:
AMD B850
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™ (AM5)
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM:
Dual Channel
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Gniazda karty graficznej:
DisplayPort, HDMI
Zintegrowana karta dźwiękowa:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej:
5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16:
2
Złącza PCI Express x1:
1
Uwagi do karty sieciowej:
TUF LANGuard
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
11
Porty USB na panelu tylnym:
4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS/2:
Brak
Port szeregowy (COM):
1x wewnętrzne gniazdo portu COM
Inne porty i gniazda:
10-1 pin System Panel header, 3x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, BIOS FlashBack button , Chassis intrusion header, Clear CMOS button(s), Front Panel Audio header (AAFP)
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin)
Uwagi do procesora:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Uwagi do pamięci RAM:
Adjustments will be made based on the specifications of mass-produced, ASUS Enhanced Memory Profile (AEMP), depending on the CPU and memory configuration, for more information please, ECC and Non-ECC Un-buffered DIMM, memory products available on the market., Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., refer to CPU/Memory Support list under the Support tab of product, Supported memory types, data rate (speed), and number of DRAM modules vary, Supports AMD EXTended Profiles for Overclocking (EXPO™)
Uwagi do kontrolera SATA:
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - Ryzen™ 7000 Series Processors: RAID 0/1/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, 4 x SATA 6Gb/s port(s), AMD B850 Chipset:, AMD RAIDXpert2 Technology:, AMD Ryzen™ 8000 Series Desktop Processors:, AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, Specifications vary by CPU types
Uwagi do karty graficznej:
AMD CPU specifications, Graphics specifications may vary between CPU types. Please refer to, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4
Uwagi do złącz PCI:
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), - 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x1 slot, AMD B850 Chipset:, AMD Ryzen 9000 & 7000 Series Desktop Processors:, AMD Ryzen™ 8000 Series Desktop Processors:, Specifications vary by CPU types
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do karty dźwiękowej:
7.1 Surround Sound audio., and speakers, Audio cover, Audio Shielding, Dedicated audio PCB layers, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, Impedance sense for front and rear headphone outputs, input (Line-in), Internal audio Amplifier to enhance the highest quality sound for headphone, Premium audio capacitors, Supports up to 32-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Unique de-pop circuit
